Specification

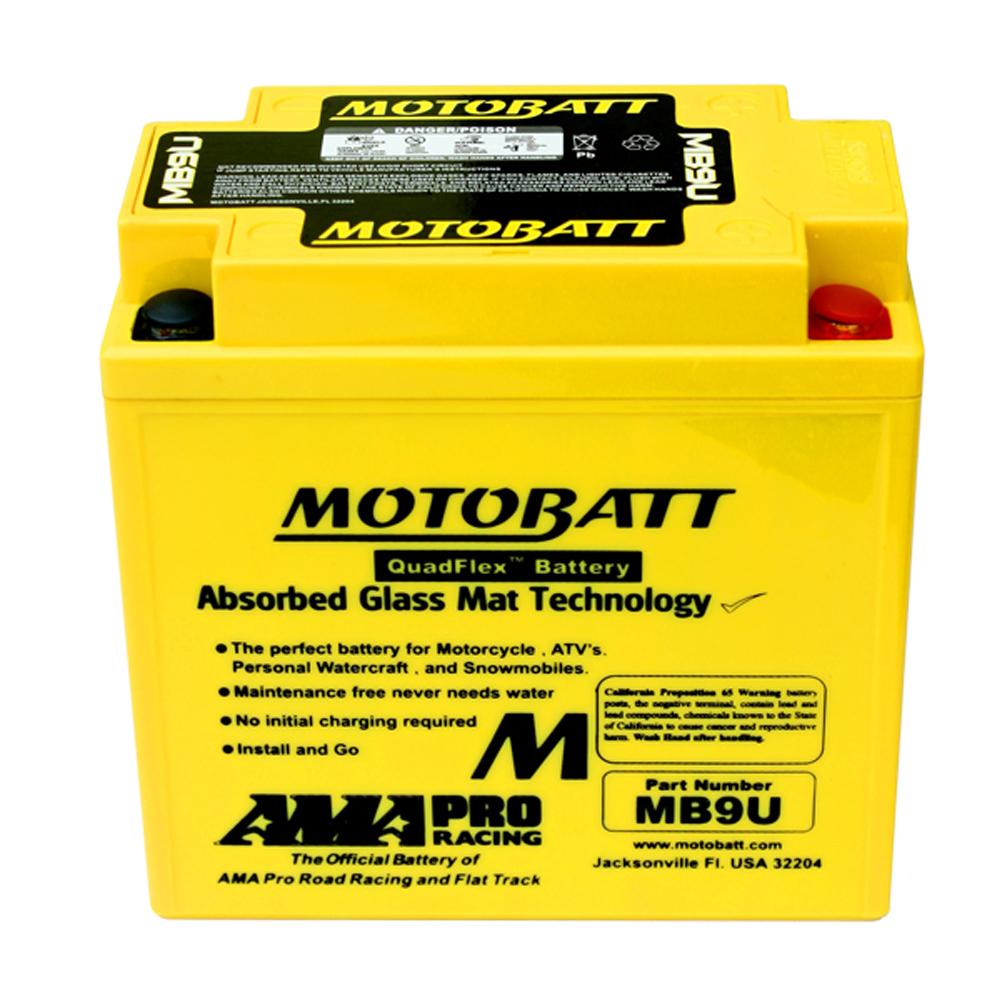

MB Item Number MB9U
Voltage 12
CCA 140
Capacity (10HR) 11
Weight 3.35kg / 7.39lbs
Dimensions (in / mm) L: 5.48 (136) W: 2.99 (76) H: 5.24 (133)
Assembly Figure
Terminal Locations 4
Terminal 2, M6x2.5 (Part#MPT2)
Screws 4, M6x7 (Part#2xMPS2)
Allen Wrench 1, 4x4 (Part#MPAK2)
Terminal Caps 4, 12x5.5 (Part#2xMPC2)
Spacer 2, Bottom (Part#MPBS2) Spacer 1 = 6mm, Spacer 2 = 15mm, Total = 21mm
Case Color Yellow
Cap Style NA
Replaces 12N73A, 12N73B, 12N7D3B, 12N74A, 12N74B, YB7A, YB7AA, YB7LA, YB7LB, YB9A, YB9AA, YB9A2, YB9LA2, YB9B, YB9LB, YB9B2, YB9LB2,12N93A, 12N93A1, 12N93B, 12N94B1
SRP NA

Application
HONDA CB160 Sport (65-69) - 160CC
HONDA CL160 Scrambler (66-68) - 160CC
HONDA CB175 Super Sport (69-73) - 175CC
HONDA CL175 Scrambler (68-73) - 175CC
HONDA CB200, T (74-76) - 200CC
HONDA CM200T Twinstar (81-82) - 200CC
HONDA CL200 Scrambler (74) - 200CC
HONDA CA72 Dream Touring (late) (63-66) - 250CC
HONDA VTR250 Interceptor VTR (88-90) - 250CC
HONDA CMX250C Rebel, LTD (85-87) - 250CC
HONDA CB72 Hawk (61-66) - 250CC
HONDA CM250C Custom (82-83) - 250CC
HONDA CA77 Dream Touring (late) (63-69) - 305CC
HONDA CB77 Superhawk (61-68) - 305CC
HONDA CJ360T (76-77) - 360CC
HONDA CB400TI Hawk I (78-79) - 400CC
HARLEY-DAVIDSON Z90 (73-76) - 90CC
HARLEY-DAVIDSON SS125, SX125 (74-78) - 125CC
HARLEY-DAVIDSON SXT125 (75-78) - 125CC
HARLEY-DAVIDSON TX125 (73-78) - 125CC
HARLEY-DAVIDSON SS175, SX175 (74-78) - 175CC
HARLEY-DAVIDSON SS250, SX250 (75-78) - 250CC
HARLEY-DAVIDSON XLCH Series(Sportster Kick Start)(70-78)- 1000CC
HARLEY-DAVIDSON FX Series (Kick Start) (71-72) - 1200CC
KAWASAKI BN125 Eliminator (01-10) - 125CC
KAWASAKI EL250, HS (88-93) - 250CC
KAWASAKI EX250 Ninja (86-94) - 250CC
KAWASAKI EX305-B GP (83) - 305CC
KAWASAKI A7 Series (66-71) - 350CC
KAWASAKI A1 Series (66-71) - 250CC
KAWASAKI KH500-A (76) - 500CC
KAWASAKI H1 Series (69-72) - 500CC
KAWASAKI H1 Series (73-75) - 500CC
KAWASAKI W Series (66-70) - 650CC
YAMAHA YG5T, YG5S ( 68-69) - 80CC
YAMAHA YL2C/CM (68) - 100CC
YAMAHA L5T, L5TA (69-70) - 100CC
YAMAHA AT1E, AT1B, AT1C 125 Enduro (69-71) - 125CC
YAMAHA AT2, AT3 125 Enduro (72-73) - 125CC
YAMAHA DT125 Enduro (74-81) - 125CC
YAMAHA SR185 Exciter (81-82) - 185CC
YAMAHA CS3B, CS3C (70-71) - 200CC
YAMAHA RD200 (74-76) - 200CC
YAMAHA CS5 (72) - 200CC
YAMAHA YCS1 (68) - 200CC
YAMAHA XS360-2 (77) - 360CC
YAMAHA SR400 (78-00) - 400CC
YAMAHA SR500 (78-99) - 500CC
APRILIA RS125 (-11) - 125CC
BENELLI 125 Jarno(c/aw.) - 125CC
BENELLI 125 Scooter Benelli - 125CC
BENELLI 125CS - 125CC
BSA 250, 350, 400, 441, 500 (12V)
BSA 600, 650, 700 (12V)
BSA Rocket 750, Thunderbolt
BSA Spitfire HK35, Starfire B25
CAGIVA Crouser (87-88) - 125CC
CAGIVA Freccia C9,/C10R,/C12R (87-90) - 125CC
CAGIVA Mito (90-97) - 125CC
CAGIVA N90 (97) - 125CC
CAGIVA Roadster (94-97) - 125CC
CAGIVA Supercity (91-97) - 125CC
GILERA Arizona - 200CC
GILERA Fast Bike - 200CC
GILERA RTX, RV, RX E-Starter - 200CC
GILERA Apache E-Starter - 125CC
GILERA Arizona E-Starter - 125CC
GILERA Crona E-Starter - 125CC
GILERA CX E-Starter - 125CC
GILERA Fast Bike E-Starter - 125CC
GILERA Freestyle E-Starter - 125CC
GILERA GFR E-Starter - 125CC
GILERA KK, KZ E-Starter - 125CC
GILERA MX1, MXR E-Starter - 125CC
GILERA Nebraska E-Starter - 125CC
GILERA R1, R1S El.-Starter - 125CC
GILERA RTX, RV, RX E-Starter - 125CC
GILERA SP01, SP02 E-Starter - 125CC
GILERA TOP Rally E-Starter - 125CC
GILERA XR1, XR2 E-Starter - 125CC
MuZ Skorpion (95-01) - 660CC
MuZ All Models (All Years) - 125CC
NORTON Ranger Commando - 750CC
PIAGGIO Ape 50FL (1993)
PIAGGIO Cosa 2
PIAGGIO Cosa CLX 125 (c/avv.)
PIAGGIO Cosa CLX 150 (c/avv.)
PIAGGIO Cosa CLX 200 (c/avv.)
PIAGGIO Hexagon 125/150
PIAGGIO P125ETES, P125TS
PIAGGIO P200E (c/avv.)
PIAGGIO PK50, PK50-C.A., PK50N, PK50XL
PIAGGIO PK80S-C.A.
PIAGGIO PK125FL, PK125SS, PK125XL
PIAGGIO PX125
PIAGGIO PX125, PX80E-ARC
PIAGGIO PX125T5
PIAGGIO PX150E
PIAGGIO PX150E-ARC
PIAGGIO PX200-ARC
PIAGGIO PX200GS
PIAGGIO Vespa PK 50 FL / FL2 (c/av.)
ROYAL ENFIELD All Kick-start Models (95-99) - 500CC
ROYAL ENFIELD All Kick-start Models (1995-1999) - 350CC
SUZUKI GT500 Titan (1976-1977) - 500CC
SUZUKI T500 Titan (68-75) - 500CC
SUZUKI GX400X (77-78) - 400CC
SUZUKI GT380 Sebring (72-177) - 380CC
SUZUKI GN125, E (91-96) - 125CC
SUZUKI GN125, E (82-83) - 125CC
TRIUMPH Bonneville, Tiger - 750CC
TRIUMPH T150 Trident - 750CC
TRIUMPH T120 Bonneville - 650CC
HONDA ATC125M (84-85) - 125CC
HONDA TRX125 Fourtrax (85-86) - 125CC
KAWASAKI KLF110-B Mojave (87-88) - 110CC
SUZUKI LT160 E QuadRunner (89-94) - 160CC
SUZUKI LT160 E QuadRunner (03-04) - 160CC
SUZUKI LT-F160 E QuadRunner (91-01) - 160CC
YAMAHA YFM50 Raptor (04-09) - 50CC
YAMAHA YFM80 Badger (85-01) - 80CC
YAMAHA YFM80 Grizzly (05-08) - 80CC
YAMAHA YFM80R Raptor (02-08) - 80CC
YAMAHA YFM100 Champ (87-91) - 100CC
ARCTIC CAT EXT (95-97) - 500CC
ARCTIC CAT EXT (EFI) (95-97) - 500CC
ARCTIC CAT Prowler (94) - 500CC
ARCTIC CAT Wildcat (EFI) (95-96) - 500CC
ARCTIC CAT Wildcat MC (94) - 500CC
ARCTIC CAT Wildcat (Touring) (95-96) - 500CC
ARCTIC CAT ZR (EFI) (95-96) - 500CC
POLARIS All EFI (RXL, 500 EFI) (93-97)
YAMAHA SV80E Sno-Scoot (88-90) - 80CC
APRILIA SR50 (09-12) - 50CC
APRILIA Sport City (08-12) - 50CC
APRILIA Sport City (08-12) - 125CC
APRILIA Scarabeo ST (09-10) - 100CC
HONDA CH150 Elite Deluxe (85-86) - 150CC
HONDA CH125 Elite (84) - 125CC
PIAGGIO FLY150 (09-12) - 150CC
PIAGGIO FLY 50 (09-12) - 50CC
PIAGGIO Typhoon (09) - 50CC
PIAGGIO-VESPA LX150 (07) - 150CC
PIAGGIO-VESPA LX50 (10-12) - 50CC
