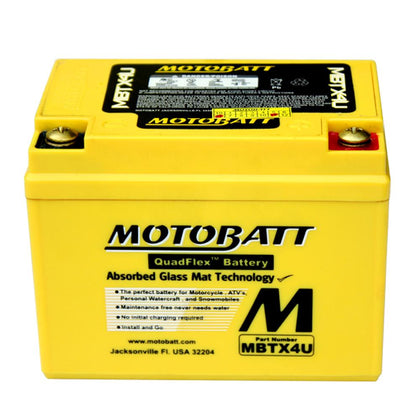

Specification
MB Item Number MBTX4U
Voltage 12
CCA 70
Capacity (10HR) 4
Weight 1.57kg / 3.46lbs
Dimensions (in / mm) L: 4.49 (114) W: 2.76 (70) H: 3.43 (87)
Assembly Figure
Terminal Locations 2
Terminal 2, M5x2.5 (Part#MPT1)
Screws 4, M5x7 (Part#2xMPS1)
Allen Wrench 1, 3x3 (Part#MPAK1)
Terminal Caps 2, 11x5.5 (Part#MPC1)
Spacer NA
Case Color Yellow
Cap Style NA
Replaces YTX4LBS, YTZ5S, YT4LBS, YB4LA, YB4LB
SRP NA
Application
HONDA TLR200 Reflex (86-87) - 200CC
HONDA XR250L (91-96) - 250CC
HONDA CT70 (91-94) - 70CC
HONDA NU50M Urban Express Deluxe (82-83) - 50CC
HONDA NX50M (81-82) - 50CC
HONDA ZB50 (88) - 50CC
KAWASAKI KL 250-D KLR (85-05) - 250CC
SUZUKI SP200 (86-88) - 200CC
SUZUKI DR250S (90-92) - 250CC
SUZUKI DR350S (90-96) - 350CC
SUZUKI DR650S N, P (92-93) - 650CC
YAMAHA TTR125E / LE Electric Start (03-07) - 125CC
APRILIA RS250 (00-04) - 250CC
APRILIA RS50 (00-05) - 50CC
APRILIA RS4 50 (11-12) - 50CC
APRILIA SR50 (00-01) - 50CC
APRILIA Scarabeo 50 (00-03) - 50CC
APRILIA Mojito (04-05) - 50CC
APRILIA Rally (04-05) - 50CC
BENELLI Devil 50(c/aw.) - 50CC
BENELLI KBX 50 Race - 50CC
BENELLI Scooty LX/DLX - 50CC
CAGIVA City,Lucky,Explorer (94-97) 50CC
CAGIVA K3,W4 (98) - 50CC
DERBI ALL MODELS
GAS GAS Pampera (97) - 370CC
GAS GAS Pampera (98-01) - 320CC
GAS GAS Pampera (96-01) - 250CC
GILERA Bullit, Easy Moving, Runner (-97) - 50CC
GILERA Eaglet (95-97) - 50CC
GILERA GSA E-Starter - 50CC
GILERA Runner (-97) - 50CC
GILERA Sioux E-Starter - 50CC
GILERA Stalker, Storm, Top Rally - 50CC
GILERA Typhoon (-97) - 50CC
KTM E/XC, M/XC Racing 4-Stroke (00-02) - 520CC
KTM SX-F (11-12) - 450CC
KTM SX-F (11-12) - 350CC
KTM XC, XC-W (11-12) - 300CC
KTM XC, EXC, XC-W (11-12) - 250CC
KTM E/XC Racing 4-Stroke (00-02) - 400CC
PIAGGIO Free
PIAGGIO NRG 50
PIAGGIO Quartz, Sactto, Sfera 50, Sfera 80, Skipper 125/150
PIAGGIO Zip-Zip (Fast Rider)
PUCH Lido SL50, Lido Vario
AEON (BENZAI) Cobra/CX-Sport 50 (All Years) - 50CC
AEON (BENZAI) Cobra/CX-Sport 90 (All Years) - 90CC
AEON (BENZAI) Cobra/CX-Sport 100 (All Years) - 100CC
ARCTIC CAT All Models (-06) - 90CC
BRP (Can-Am) DS50, Quest (02-06) - 50CC
BRP (Can-Am) DS70 (-12) - 70CC
BRP (Can-Am) DS90, DS90F, Quest (02-12) - 90CC
E-TON AXL, TXL, NXL, RXL (99-03) - 50CC
E-TON AXL, TXL, NXL, RXL (99-03) - 90CC
E-TON DXL90 Sierra (99-03) - 90CC
KASEA Mini Skyhawk (All Years) - 50CC
POLARIS Scrambler (01-02) - 50CC
POLARIS Scrambler, Sportsman (01-02) - 90CC
QIANJIANG ATV100 (All Years) - 100CC
QIANJIANG ATV50 (All Years) - 50CC
HONDA NB50 Aero (85-87) - 50CC
HONDA NB50M Aero (83-84) - 50CC
HONDA NN50MD Gyro (84) - 50CC
HONDA NQ50 Spree, 50D SS (86-87) - 50CC
HONDA NQ50 Spree (84-85) - 50CC
HONDA SA50 Elite LX, S, SR (88-01) - 50CC
HONDA SB50 (All) (88-90) - 50CC
HONDA SE50 Elite (All) (87) - 50CC
HONDA TG50 Gyro S (All) (85-86) - 50CC
HYOSUNG SB50SuperCab,SD50Sense,F50Prima,Rally,Sense
PIAGGIO-GILERA SP50 (10-12) - 50CC
SYM RS50 (10) - 50CC
YAMAHA CE50 Riva Jog (86-87) - 50CC
YAMAHA CG50 Riva (88-91) - 50CC
YAMAHA CW50 Zuma (89-90) - 50CC
YAMAHA CW50 Zuma II (97-01) - 50CC
YAMAHA CY50 Riva Jog (92-01) - 50CC
YAMAHA SH50 Riva Razz (87-01) - 50CC
